Diagrams

Architecture and approach diagrams. Each is embedded as a vector SVG and offered as a high-resolution PNG. For slides: download the SVG, insert it into PowerPoint, then right-click → Convert to Shape for fully editable native shapes.

Editing a diagram

The diagram sources are the .d2 files in this folder. After editing a .d2, re-render both images with the d2 CLI — for example d2 --layout elk --theme 4 --pad 48 system-overview.d2 system-overview.svg, and the same with --scale 3 and system-overview.png for the PNG — and commit the updated .svg/.png alongside it.

System Overview

System Overview

Download PNG · Download SVG

Subscribing runs through a separate path: the REST API accepts the request and hands a ticket to a strictly ordered ticket queue, and a subscription worker takes those tickets one at a time to match sensors, record the processors the Orchestrator should run and wire the delivery queue, and re-checks every active subscription hourly. That path is drawn in Platform Overview and, step by step, in System Architecture.

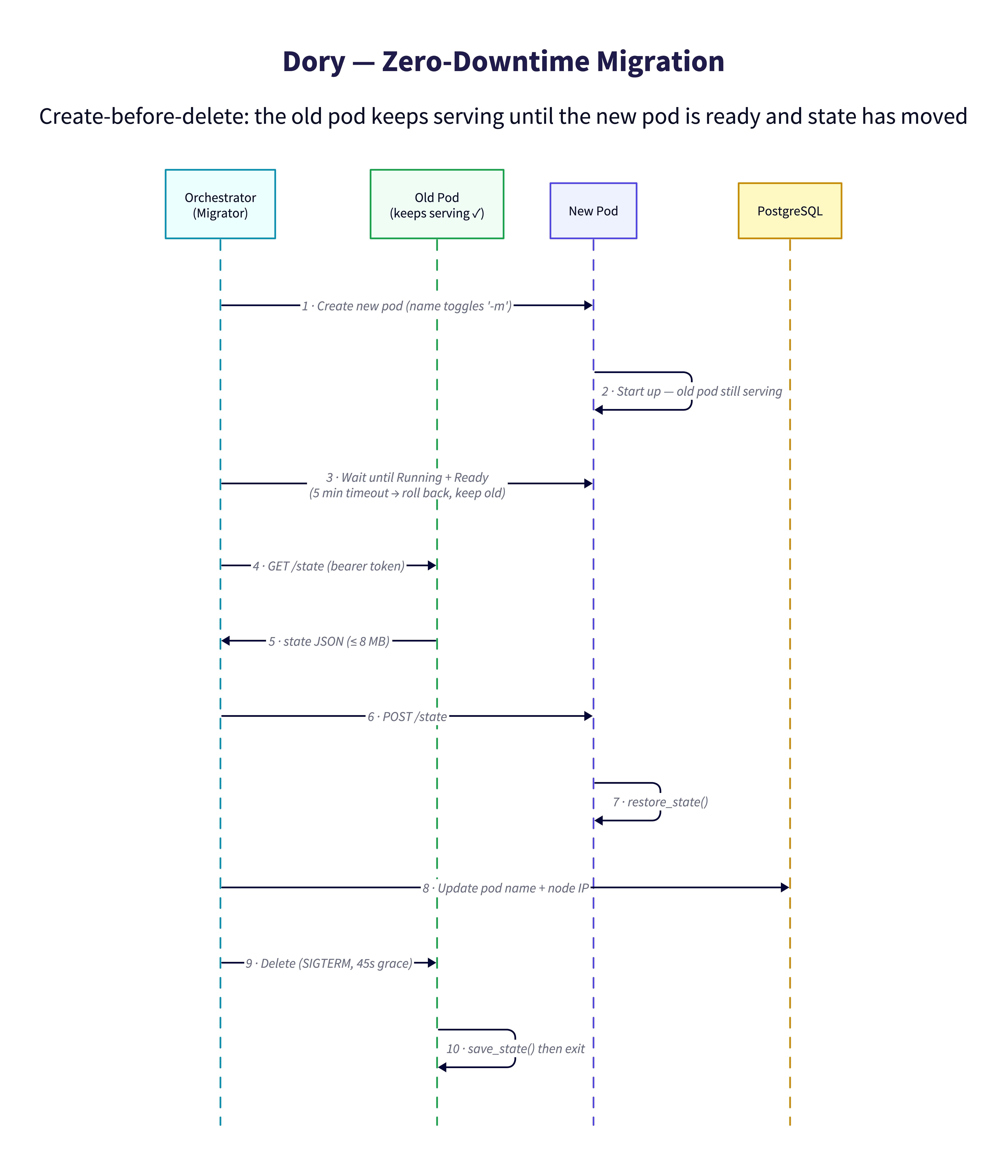

Migration

Migration

Download PNG · Download SVG

Failover

Failover

Download PNG · Download SVG

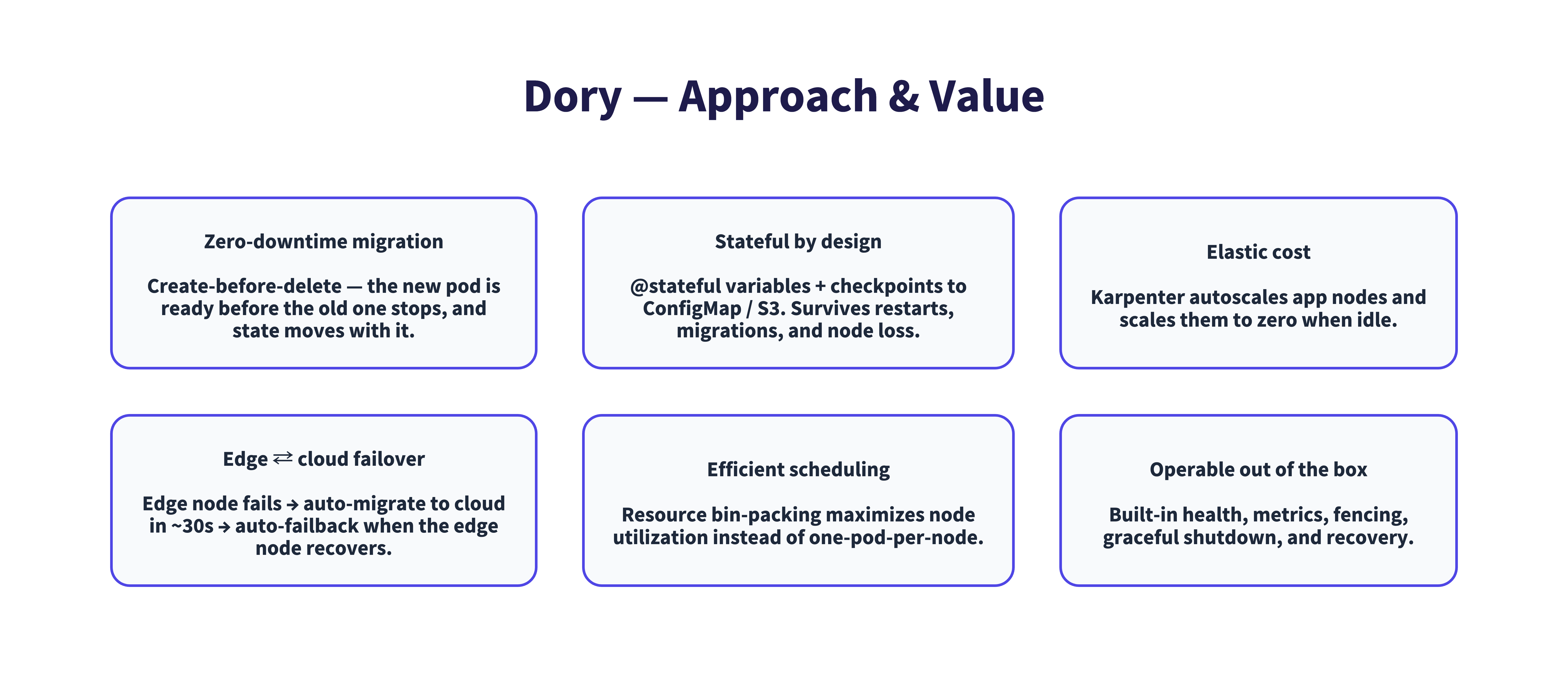

Approach

Approach

Download PNG · Download SVG
